Description
Oase AquaMax Dry 6000-14000
First-class pumping capacity and flexible installation options in dry conditions! It is ideal for use below the water level in an external pump chamber – even on swimming and bathing ponds. Due to its solid base, it stands particularly firmly. The filter and watercourse pump pumps the pond water with dirt particles up to 8 mm in size to the filter system. It works extremely quietly and is electronically adjustable.

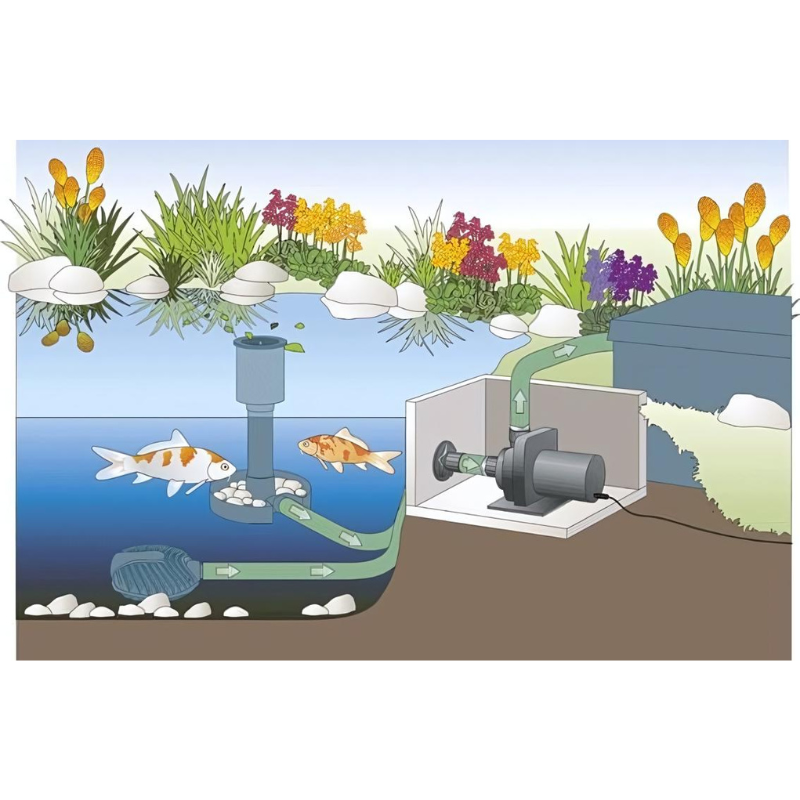

All Aquamax Dry pumps should be mounted in a flooded suction configuration (in that the pump can be mounted on dry land but must be positioned below the pond water line, to constantly flood the pump inlet with water via gravity). This is to prevent the pump to run dry and cause overheating.
Features:
Quiet pump, especially for dry setup
Extremely stable thanks to its solid base
Electronically adjustable with the OASE InScenio FM-Master 3

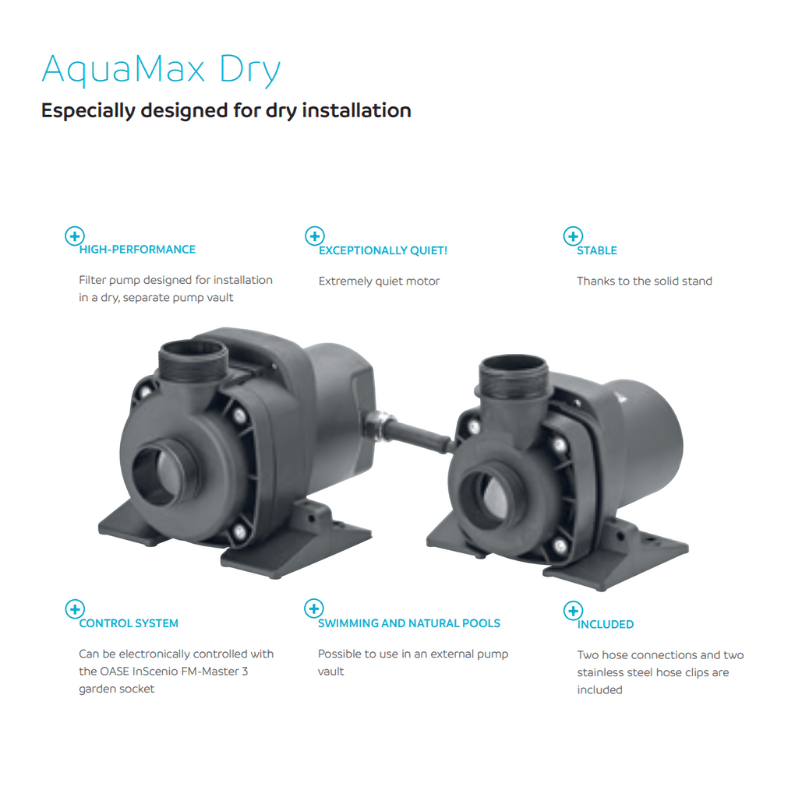

Characteristic:
HIGH-PERFORMANCE: Filter pump designed for installation in a dry, separate pump vault
EXCEPTIONALLY QUIET: Extremely quiet motor
STABLE: Thanks to the solid stand
INCLUDED: Two hose connections and two stainless steel hose clips are included
SWIMMING AND NATURAL POOLS: Possible to use in an external pump vault
CONTROL SYSTEM: Can be electronically controlled with the OASE InScenio FM-Master 3 garden socket
Technical Data:

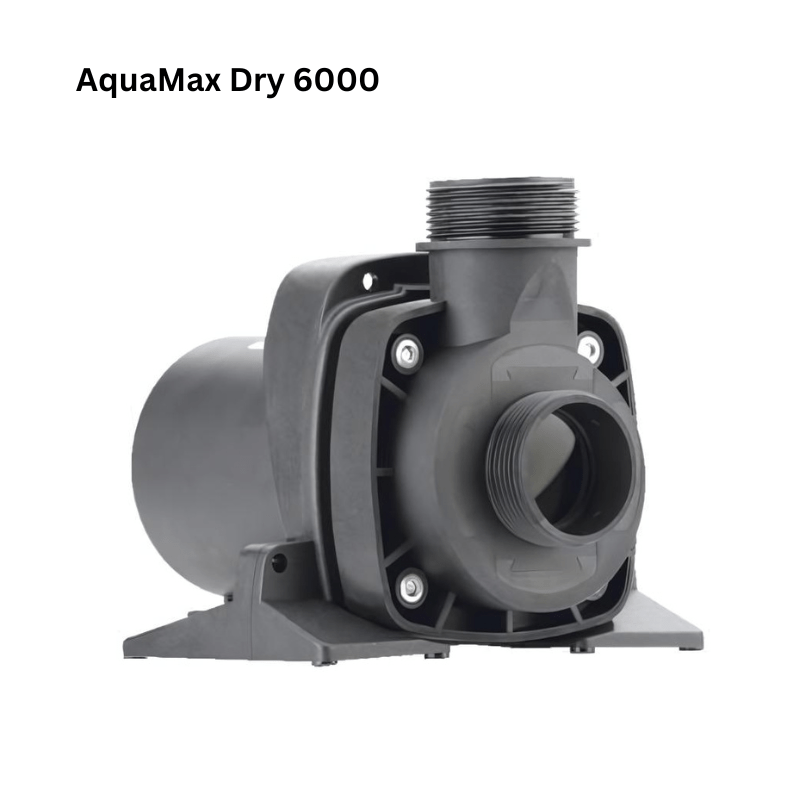

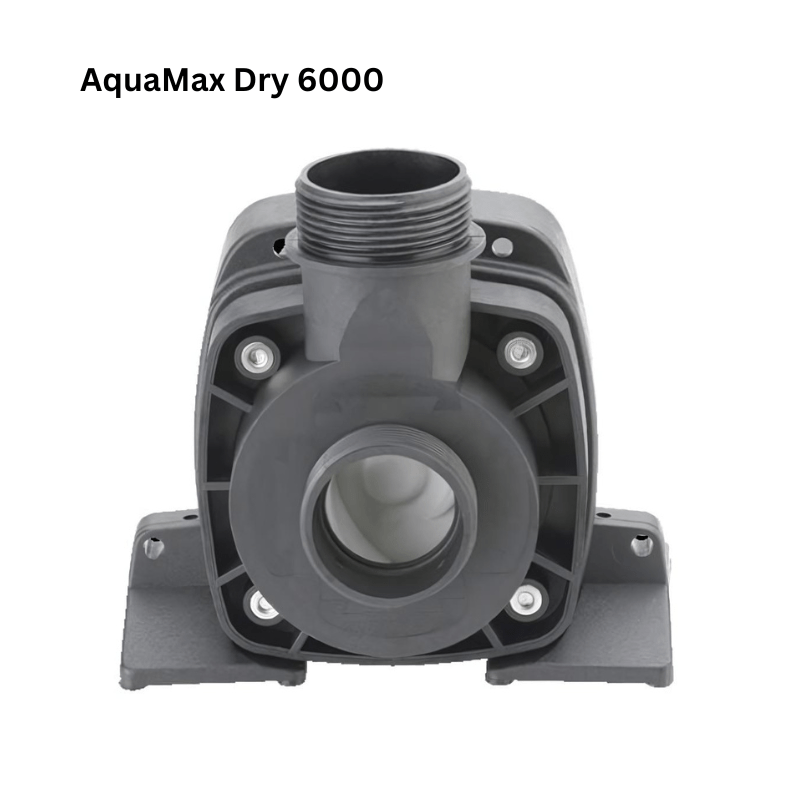

AquaMax Dry 6000
Max Flow Rate (litres per minute) 100
Max Discharge Head (metres) 2.2
Max Suction Lift (metres, if appropriate) 0
Discharge connection 1 1/2″ BSPM
Recommended discharge hose (int Ø, inch/mm) 1 1/2″ / 38mm
Suction connection 1 1/2″ BSPM
Recommended suction hose (Int. Ø, inch/mm) 1 1/2″ / 38mm
Solids handling capacity (mm Ø) 8mm
Voltage/Hz 220-240V / 50Hz
Power consumption watts : 75w
Cable length (metres) : 10m
Dimensions: 200 x 150 x 150mm
Weight: 3.1kg
Guarantee: 3 years

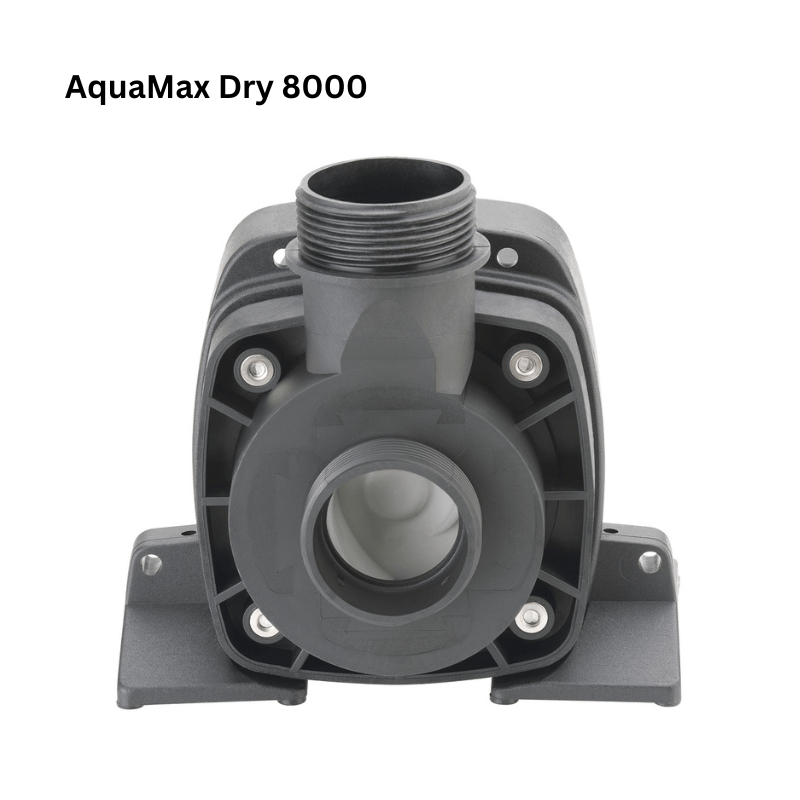

AquaMax Dry 8000
Dimensions (L x W x H): 200 x 150 x 150mm
Rated voltage : 220 – 240 V / 50 Hz
Power consumption : 100w
Power cable length : 10.00m
Net weight : 3.20kg
Guarantee: 3 years
Max. flow rate l/min 125
Max. flow rate l/h 7500
Max. head height, metres : 3.00m
Pressure-side connection G 1 ½
Suction-side connection G 1 ½
Hose connection mm 25 / 32 / 38
Hose connection 1″, 1 ¼”, 1 ½”
Max. coarse debris displacement : 8mm
Electronic adjustment : Yes
Setup type: For dry installation only

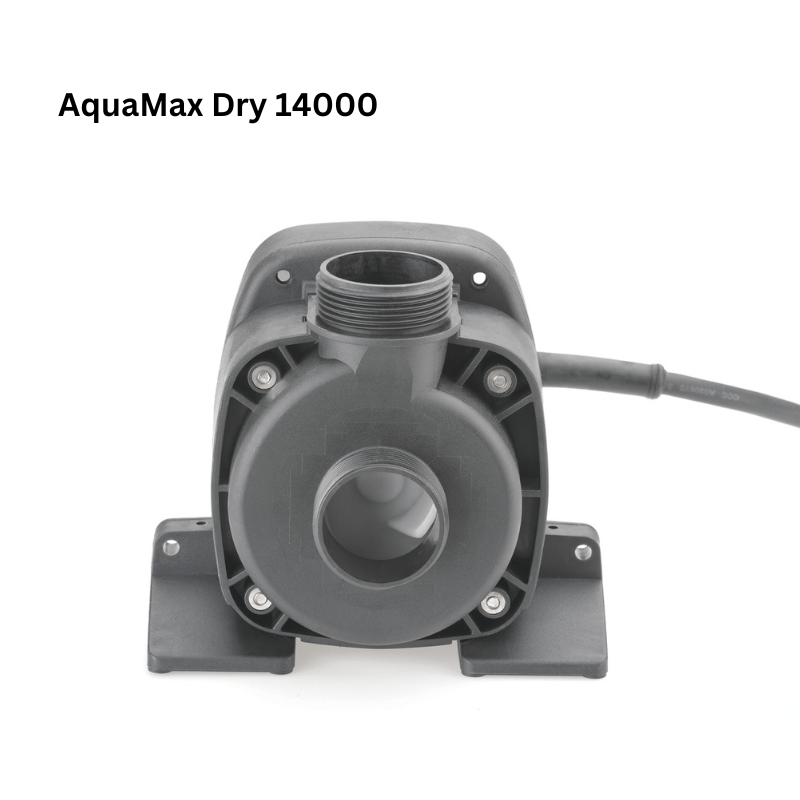

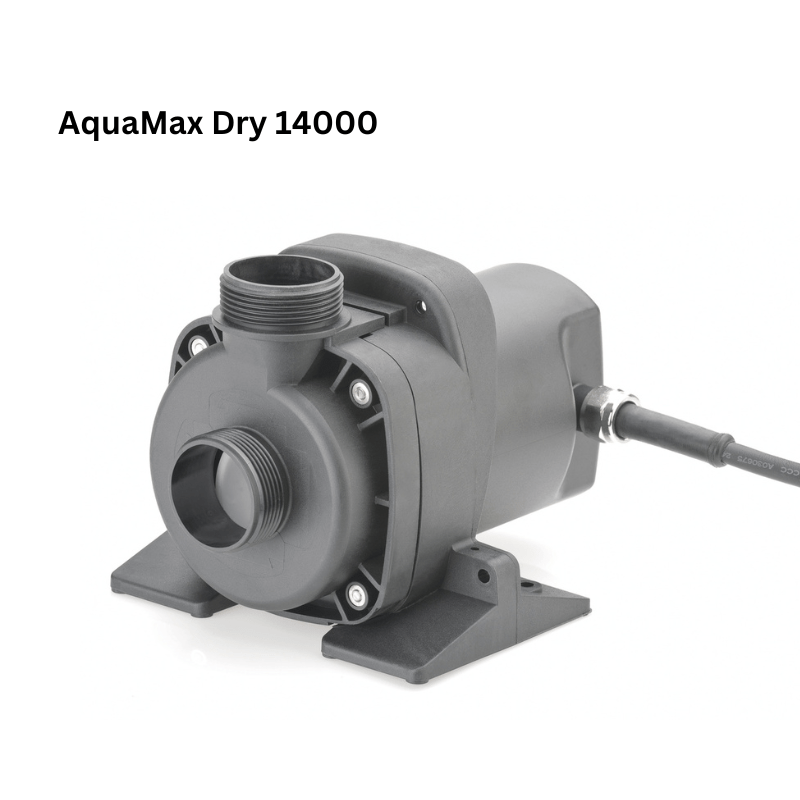

AquaMax Dry 14000
Dimensions (L x W x H) : 210 x 150 x 170mm
Rated voltage: 220 – 240 V / 50 Hz
Power consumption : 230w
Power cable length : 10.00m
Net weight : 5.00kg
Guarantee : 3 years
Max. flow rate : 225l/min
Max. flow rate : 13500 1/h
Max. head height, metres: 5.00m
Pressure-side connection G 1 ½
Suction-side connection G 1 ½
Hose connection mm 25 / 32 / 38
Hose connection 1″, 1 ¼”, 1 ½”
Max. coarse debris displacement mm 8mm
Electronic adjustment : Yes
Setup type: For dry installation only
