Description

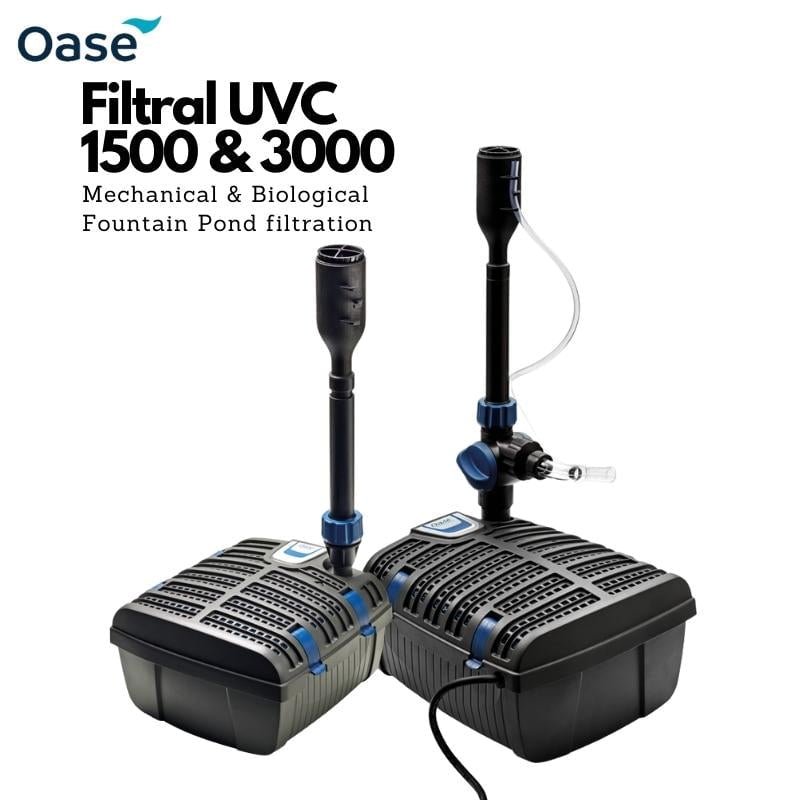

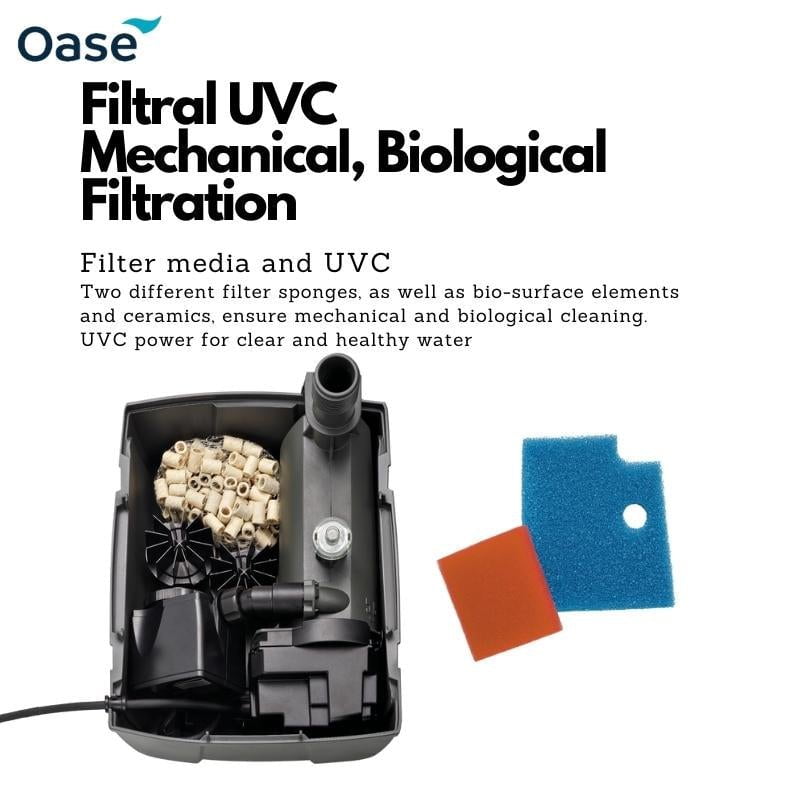

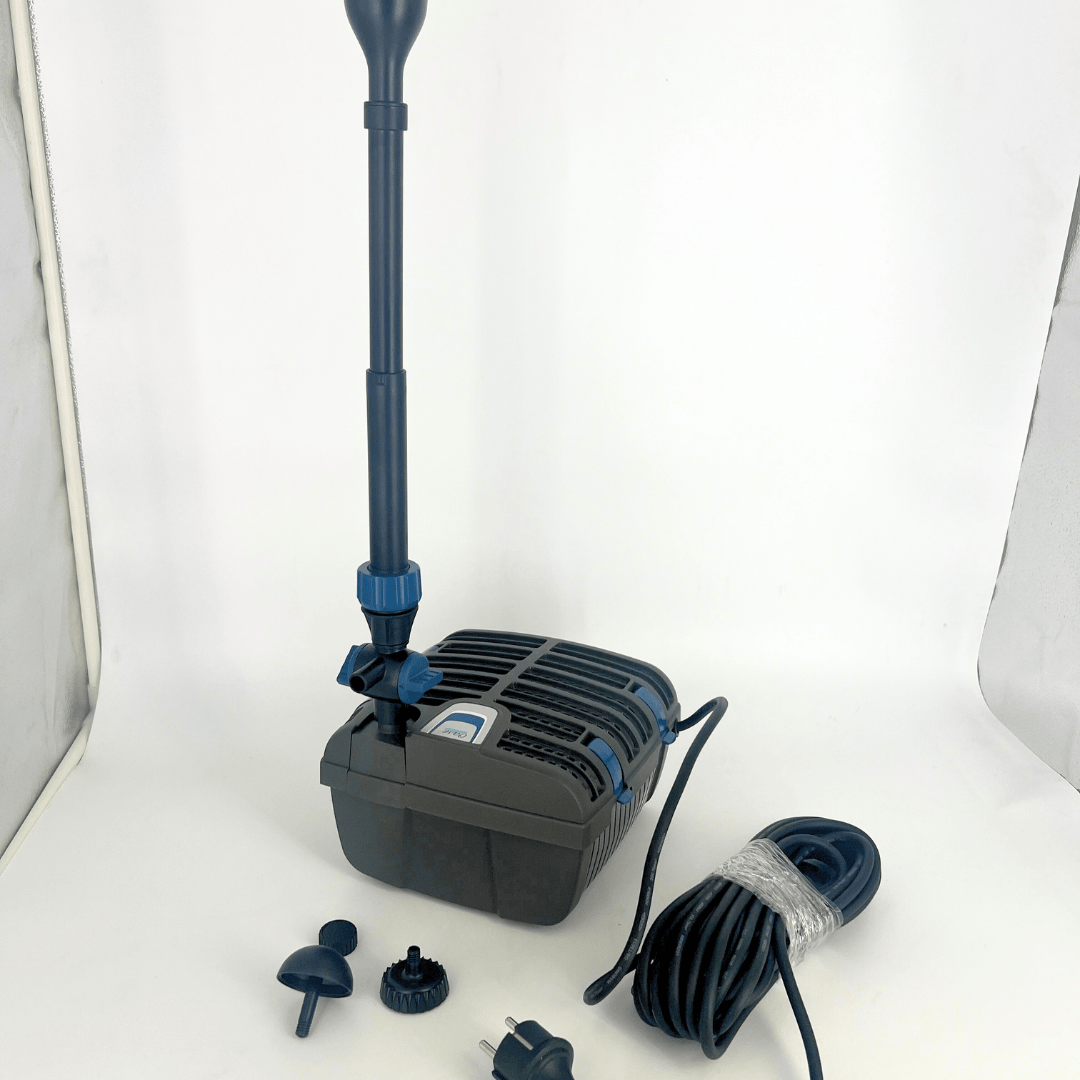

Filtral UVC is a compact all-rounder mechanical and biological filter for small ponds, to supplement a filter system, or suitable for decorative pools such as zinc tubs or barrels. The compact underwater filter with UVC technology for sterilisation also has the option for various water fountain attachments and an aeration nozzle from the Filtral UVC 3000 onwards. Four different filter materials ensure clear water.
Key Features,
Multifunctional compact solution for pre-fabricated pools and smaller ponds

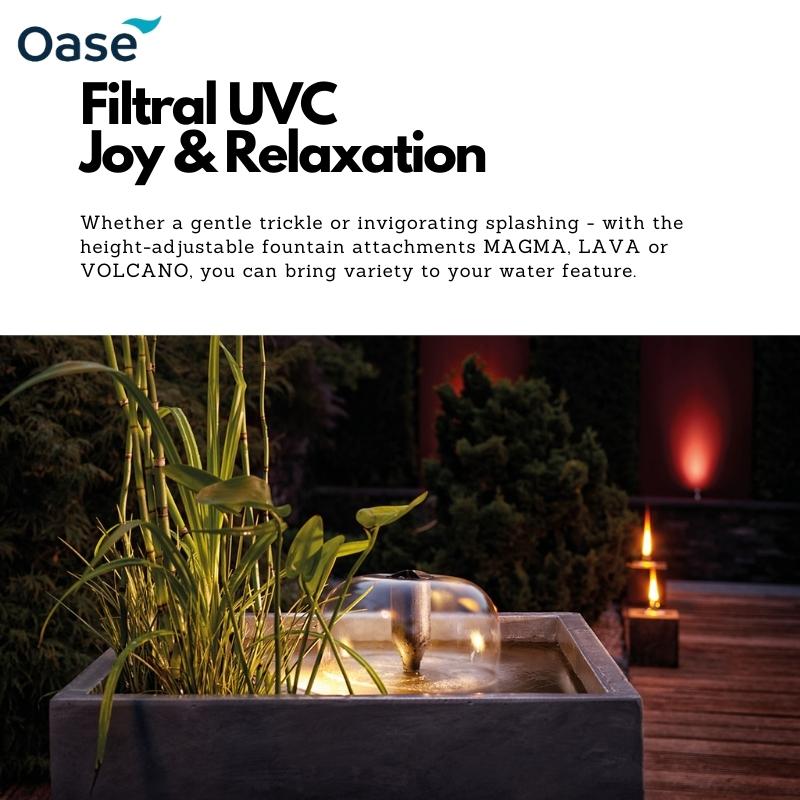

Clear water, guaranteed, and beautiful fountains
The technology is virtually invisible because it is set up underwater
Characteristics,
MULTI-TALENTED: With filter function, water feature and aeration nozzle (aeration nozzle included in delivery, from Filtral UVC 3000)
GUARANTEED: Includes OASE clear water guarantee
ADJUSTABLE: Adjustable Y-distributor, for operating water spouts or small watercourses
CONTROL SYSTEM: Individual adjustments of water flow and fountain height

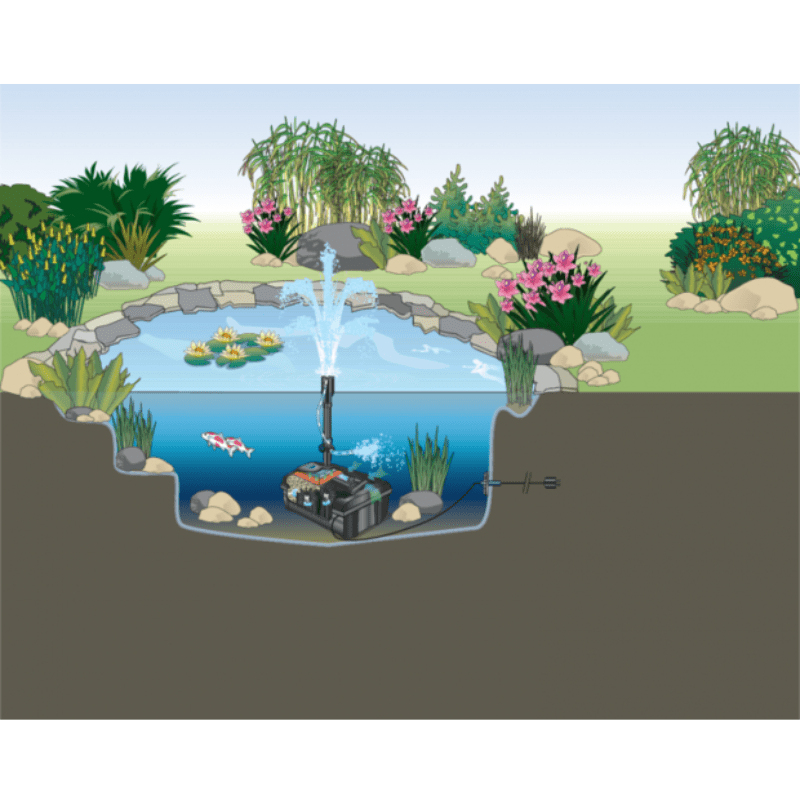

CONCEALED: Installation completely underwater – ensuring that the overall appearance of the pond remains undisturbed
OVERVIEW: Thanks to UVC clarifier with optical function check

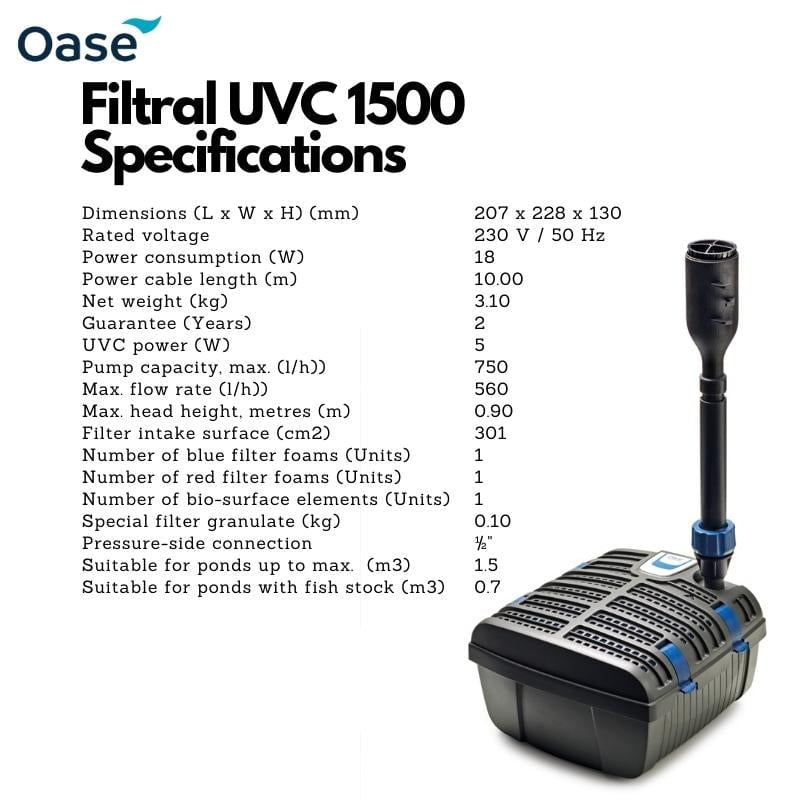

OASE Filtral UVC 1500
Dimensions (L x W x H) mm 207 x 228 x 130
Rated voltage 230 V / 50 Hz
Power consumption W 18
Power cable length m 10.00
Net weight kg 3.10
Guarantee Years 2
UVC power W 5
Pump capacity, max. l/h 750
Max. flow rate l/h 560
Max. head height, metres m 0.90
Filter intake surface cm2 301
Number of blue filter foams Units 1
Number of red filter foams Units 1
Number of bio-surface elements Units 1
Special filter granulate kg 0.10
Pressure-side connection ½”
Suitable for ponds up to max. m3 1.5
Suitable for ponds with fish stock m3 0.7
Aeration set included in the scope of delivery No

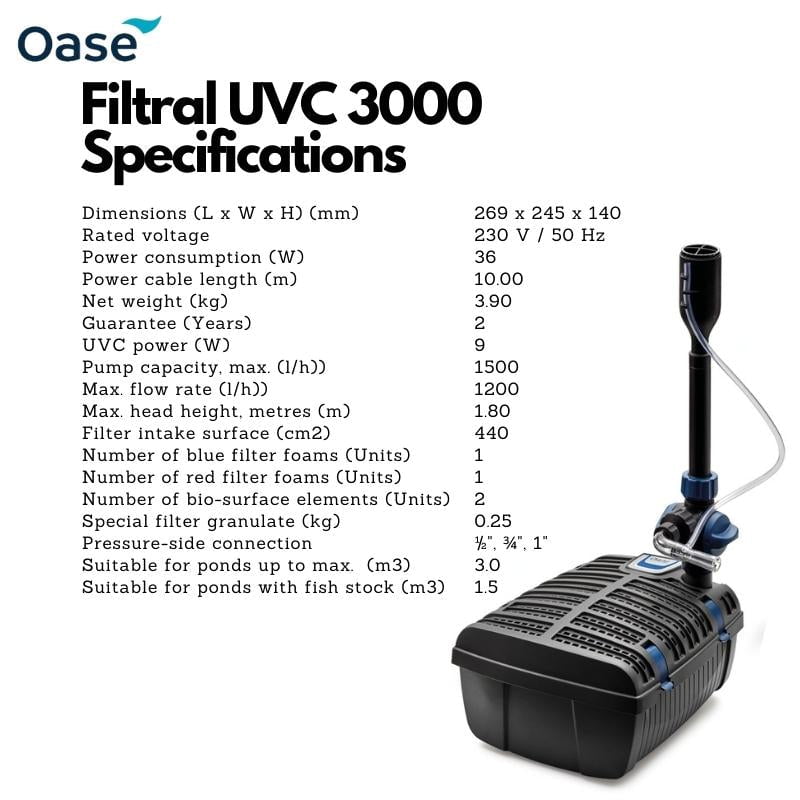

OASE Filtral UVC 3000
Dimensions (L x W x H) mm 269 x 245 x 140
Rated voltage 230 V / 50 Hz
Power consumption W 36
Power cable length m 10.00
Net weight kg 3.90
Guarantee Years 2
UVC power W 9
Pump capacity, max. l/h 1500
Max. flow rate l/h 1200
Max. head height, metres m 1.80
Filter intake surface cm2 440
Number of blue filter foams Units 1
Number of red filter foams Units 1
Number of bio-surface elements Units 2
Special filter granulate kg 0.25
Pressure-side connection ½”, ¾”, 1″
Suitable for ponds up to max. m3 3.0
Suitable for ponds with fish stock m3 1.5
Aeration set included in the scope of delivery Yes
OASE Filtral UVC 6000
Dimensions (L x W x H) mm 347 x 276 x 157
Rated voltage 230 V / 50 Hz
Power consumption W 52
Power cable length m 10.00
Net weight kg 5.00
Guarantee Years 2
UVC power W 11
Pump capacity, max. l/h 2500
Max. flow rate l/h 1700
Max. head height, metres m 2.10
Filter intake surface cm2 697
Number of blue filter foams Units 1
Number of red filter foams Units 1
Number of bio-surface elements Units 4
Special filter granulate kg 0.80
Pressure-side connection ½”, ¾”, 1″
Suitable for ponds up to max. m3 6.0
Suitable for ponds with fish stock m3 3.0
Aeration set included in the scope of delivery No
