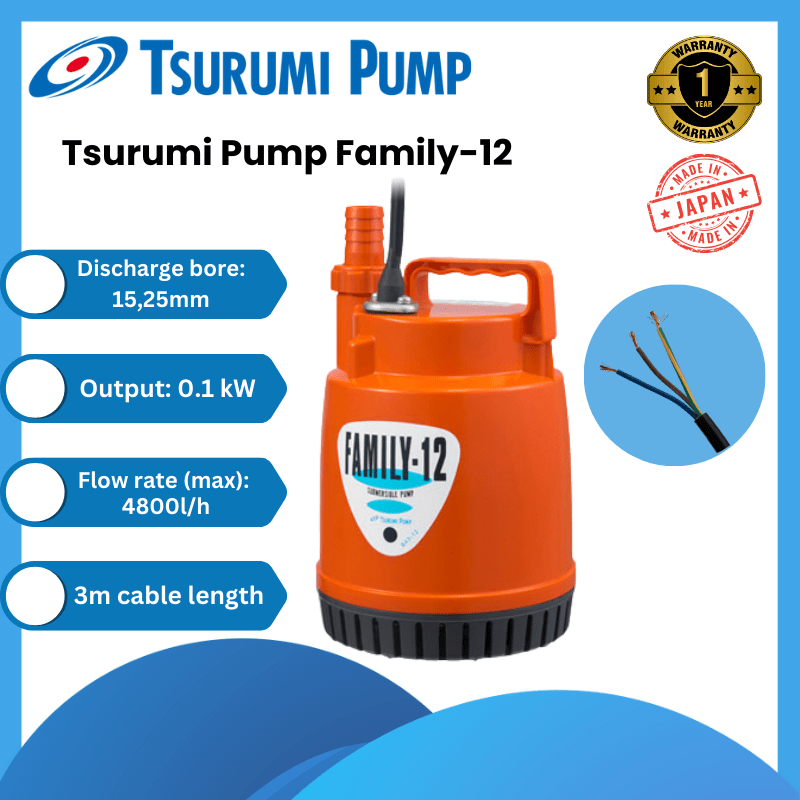

Description
The FAMILY series are submersible single-phase portable drainage pumps. In addition to the 25mm hose coupling, it also comes with an easy-to-attach 15mm hose coupling as a standard accessory. The FAMILY-A pump with a cylindrical float switch reduces power consumption and extends operating life.

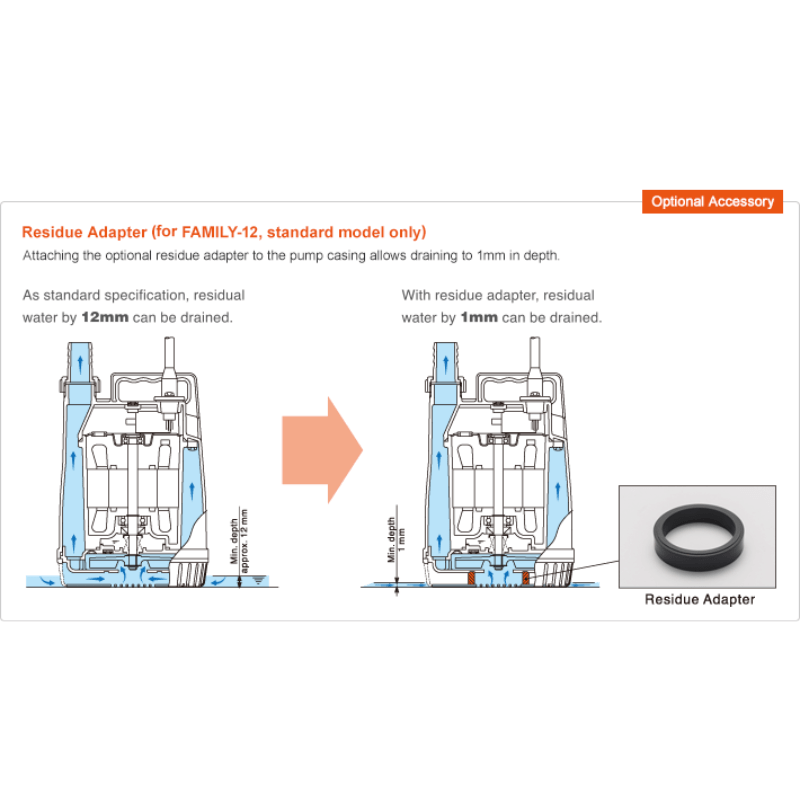

Moreover, it can be used as a residue pump and drain water to 1mm in depth by attaching the optional residue adapter to the pump casing (for FAMILY-12, standard model only).
Features:
Flow-thru design
Anti-wicking cable entry
Motor protector
Inside Mechanical Seal
Applications:
Irrigation, washing of fish pond, small fish pond, and other de-watering purpose/transfer of water.

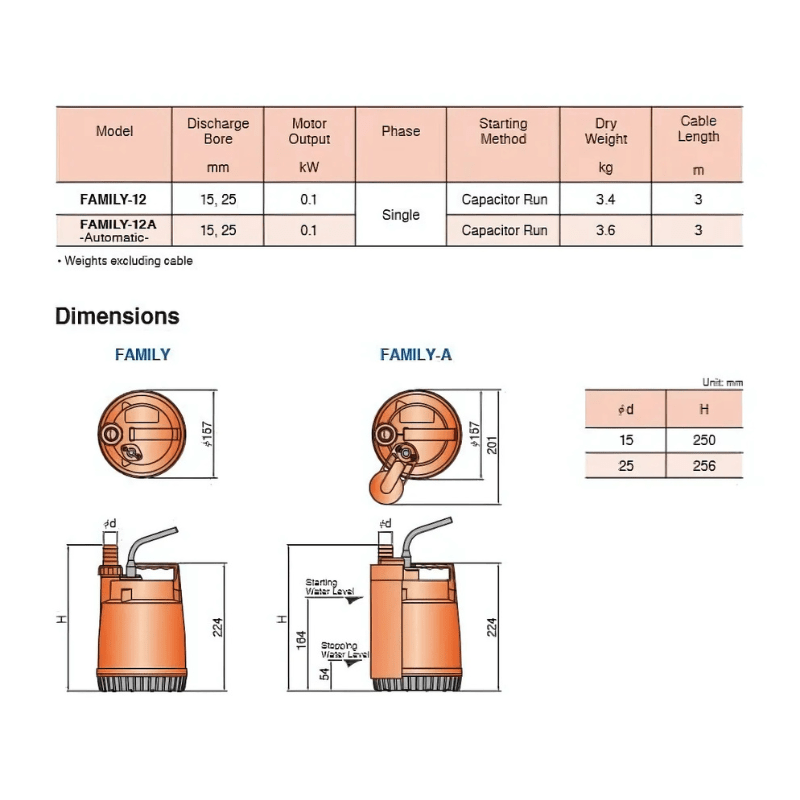

Specifications:
Discharge Bore (mm): 15,25
Motor Output (kW): 0.1
Power: 100W/230V
Frequency: 50/60Hz
Max. Head: 6/7m
Flow rate: 4800l/h
Phase: Single
Starting Method: Capacitor Run
Cable: 3m
Dry weight: 3.4kg
What is in the box ?
Pump
Hose coupling 15mm
Hose coupling 25mm
Hose clip
