Description
Nova 180, Nova 200 by DAB are submersible pumps for drainage (also rainwater) in residential building service. The pumps have been redesigned on the occasion of the forty years of marketing, making them even more reliable, resistant and ergonomic to use. They can also be used for emptying tanks or cisterns.
Nova 180 are suitable for fixed or portable installations and they are available in the automatic version with the integrated float switch or in the manual version without the float. The pumps are suitable for drainage of flooded basements, cellars and garages or to prevent flooding when installed in rainwater collector wells, which can also be used as a portable pump in emergency situations to drain water from flooded premises.
The pump body, the impeller and the suction grille are in techno polymer, the motor shaft is in stainless steel. Thermal protection incorporated in all single-phase versions. they can work in dry run for up to a minute. 10 mm free passage. In compliance with the European standard EN 60335-2-41 in case of external use the 10 meter power cable is mandatory.
Submersible pump for water features, drainage of clean water, suitable for domestic applications such as collection from wells, small floods of cellars and in gardening.
Features:
Max water Output: 5000 Liters/Hour
All components are in rust-proof techno polymer
Built-in thermal and current overload protection
Minimum suction height from 7 mm
Compact dimensions
Advantages:
No rusting over time
The built-in thermal and current overload protection protects the pump in the event of malfunctions
Collection possible even with very low water levels
Compact and rugged construction
Benefits:
Product resistance and durability
Maximum adaptability to all domestic requirements
Usable also in very small wells

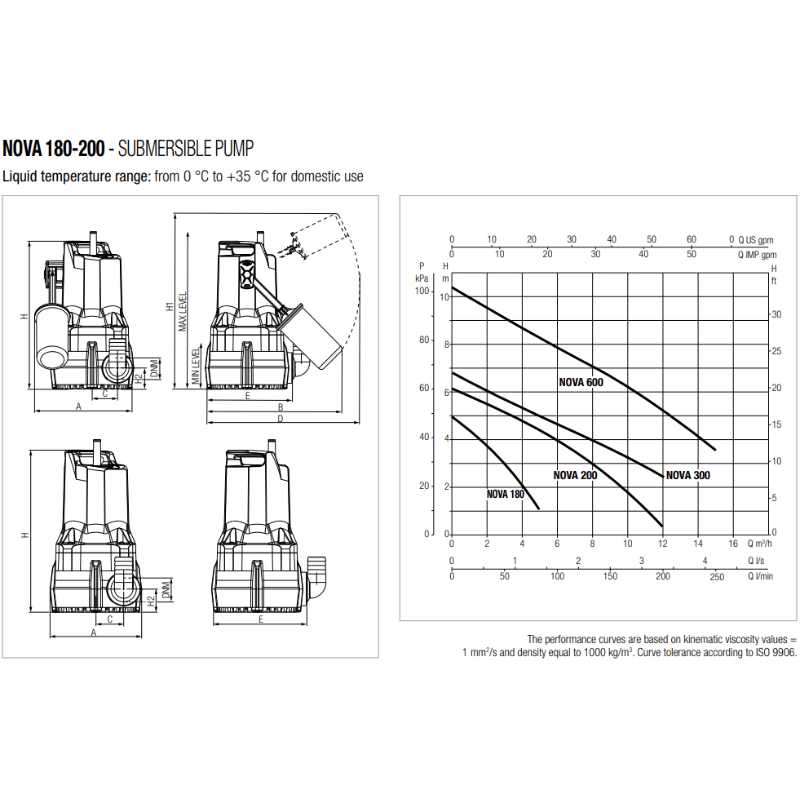

The capacity of DAB NOVA-180 in Liters at Various Heads
HEAD (mt)
0
1.4
2.4
3.15
3.5
4.2
4.8
Litres Per Hour
5000
4500
3600
3000
2400
1200
0
Size
Height – 25.3cm, Bottom width – 14.8cm
Weight
4.6kg
Material
Techno polymer
Motor protection
IP68
Standard voltage
single-phase 220-240 V/50 Hz
Max Kw
0.19
Hp & A
0.28 & 0.9
Cable length
5 Mt
Max immersion depth
7 meters
Max dry running time
1 minute

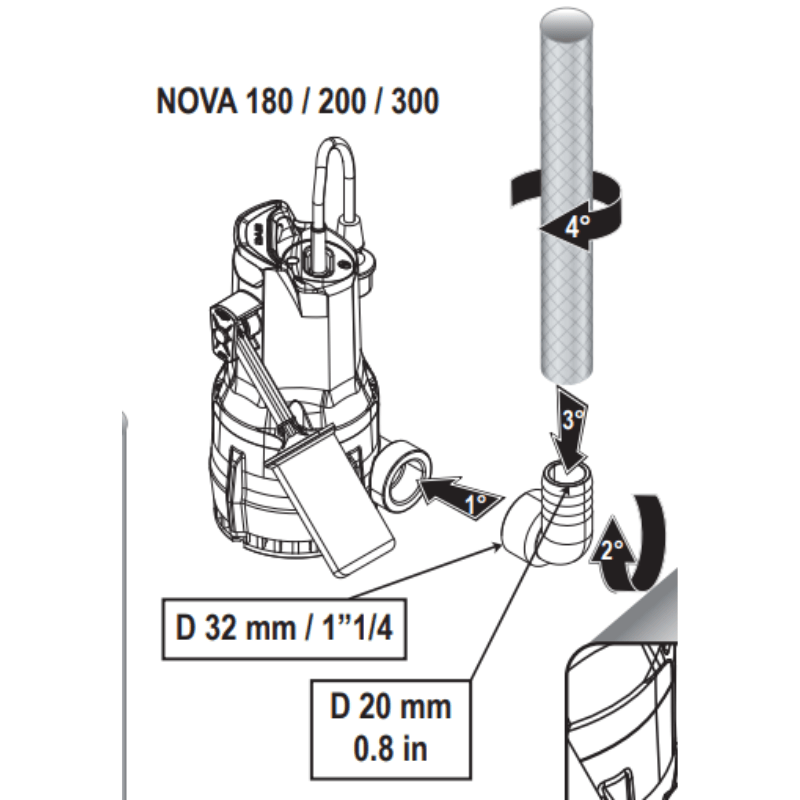

Installation
fixed or portable in a vertical position
